SFOM150YZ4-128128WB-01 Specification.pdf
About this item 1.5 Inch OLED Display 128x128 Pixels 4 Pins I2C Interface

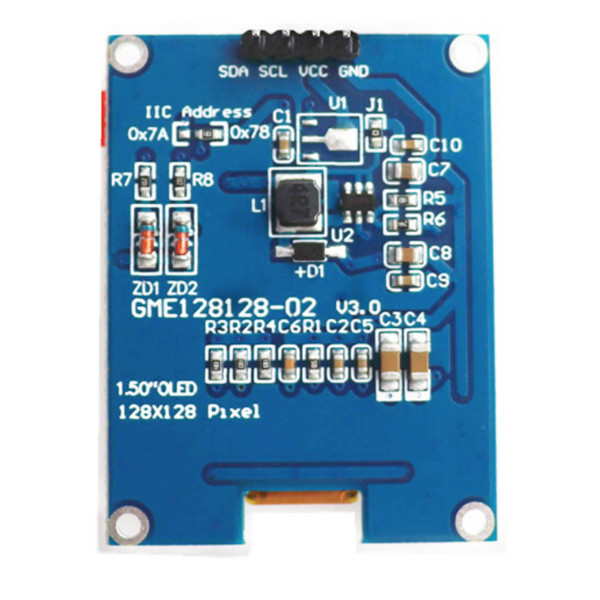

SFOM150YZ4-128128WB-01 is a graphic COG with PCB OLED module, which is made of resolution 128x128 pixels, diagonal size 1.5 inch. SFOM150YZ4-128128WB-01 is built in with SSD1327Z IC; it supports I2C interface, 1/128 driving duty. It is having PCB outline size 34.3×45.5 mm with mounting holes on board and 4x1 metal pins on module. It features:
1. IIC serial communication interface, simple wiring, only 2 signal lines, connected with the power supply with 4PIN line, easy to use;
2. Size: 1.5 inch, Resolution: 128x128, Color: White, Viewing angle: greater than 160 degrees, Supported platforms: for arduino, 51 series,ESP, STIM32 / 2, SCR chips.
3. Low power consumption: 0.05W during normal operation, Support voltage: 3.3V DC, Working temperature: -40C-85C degrees.
Features
| Product: | 1.5 Inch OLED 4 Pins I2C | Resolution: | 128x128 Pixels |
| Structure: | COG + PCB | Interface: | I2C interface |
| Touch Screen: | Customizable | Viewing Direction: | All Viewing Angles |
| Outline Dim.: | 34.3 × 45.5 × 3.8 Mm | Connection: | Header Pins |

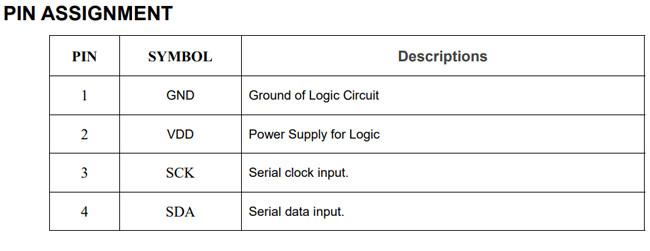

| Pin Number: | 4 Pins ( 7 Pins Optional ) | Operating Temp.: | -40℃ To +85℃ |
| Lifetime: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |

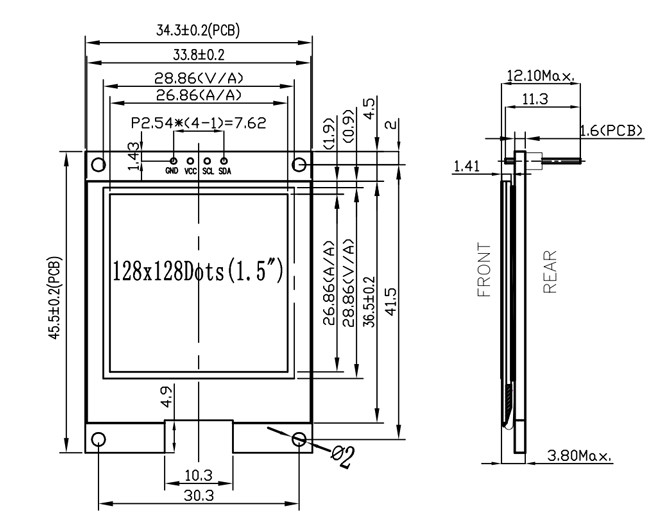

1.5 Inch OLED Display Module Unit 128x128 Pixels Product Drawing

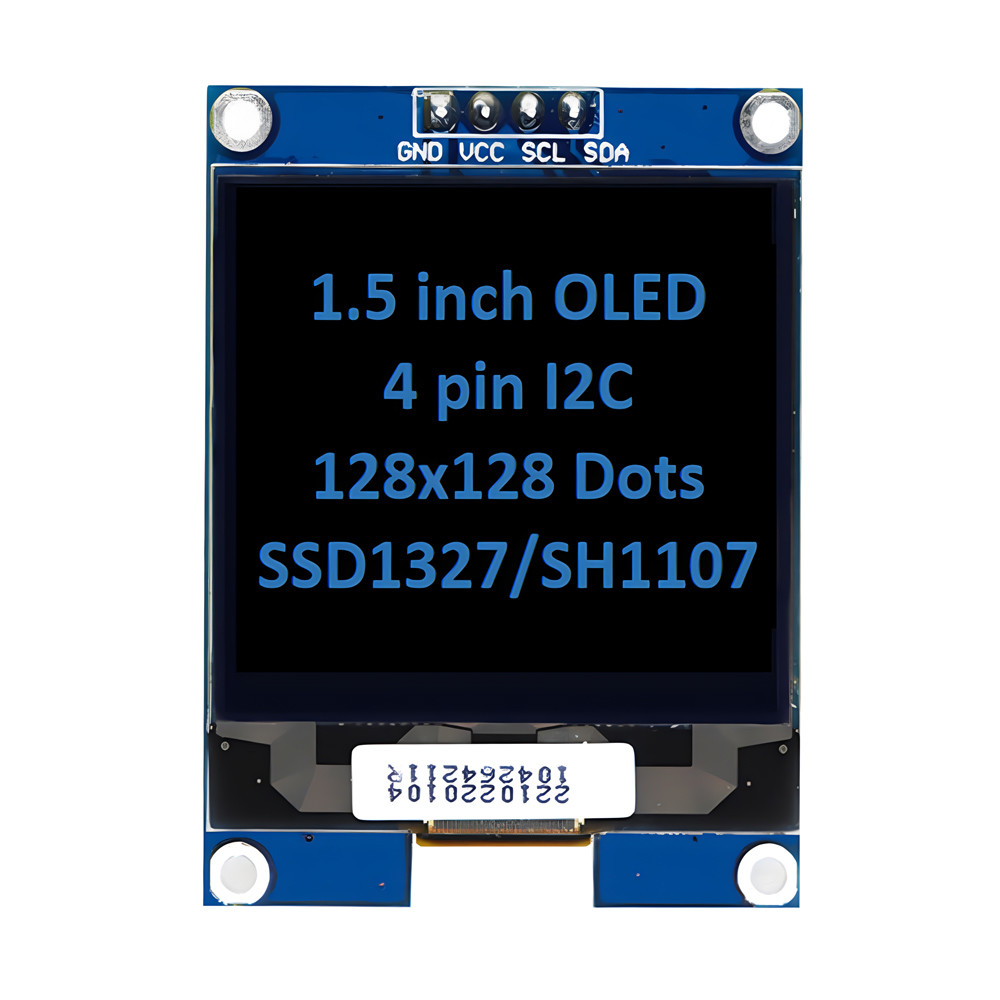

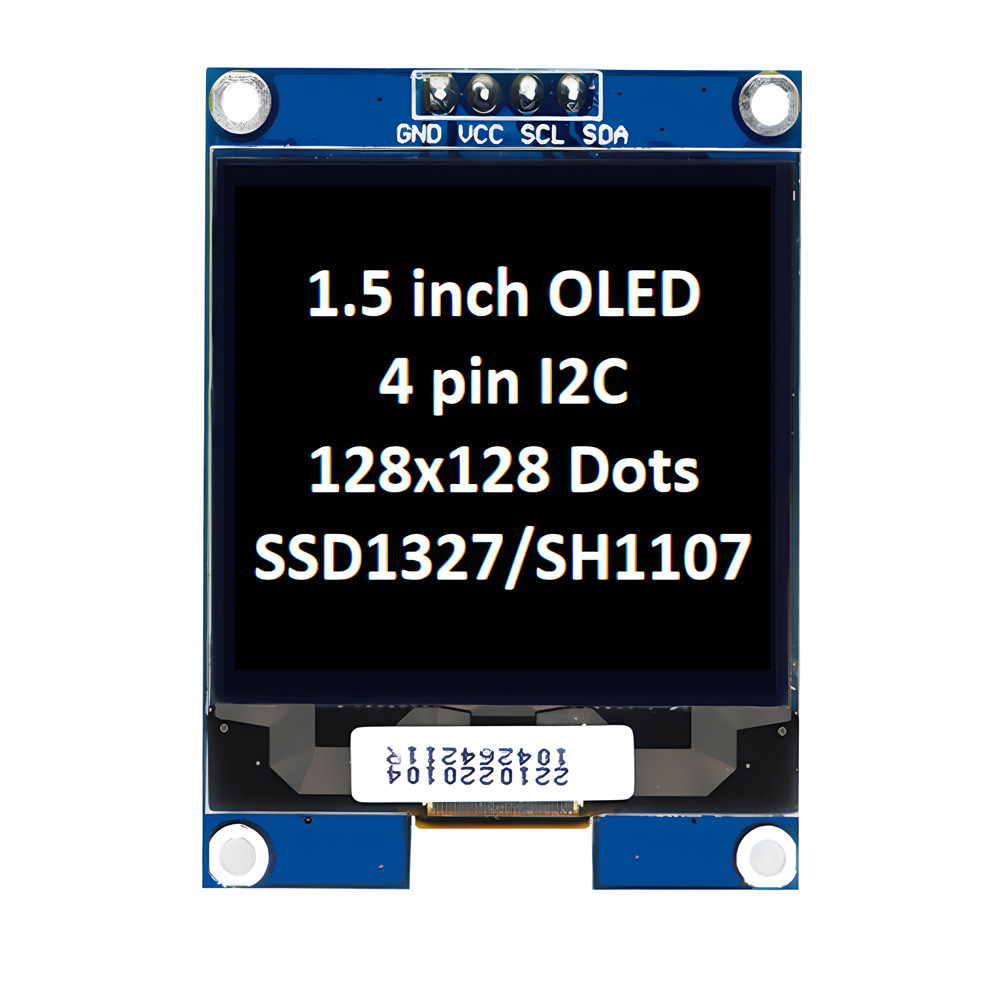

1.5 Inch OLED Display Module Unit 128x128 Pixels Product Image
Factory Facilities and Certificates
Why Choose us
1．We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2．Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3．Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4．Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
Contact Us
We love to hear about your projects, If you have any questions, we can be reached at sales2@saef.com.cn
