8x2 VATN Characters Monochrome LCD Display Module 5×8 dots includes cursor alphanumeric display
VATN Alphanumeric LCD Display 8x2, Display LCD 8x2 Description
This is a 8 character by 2 line LCD display with a black background and red led backlight. This model VATN LCD is with outline dimension of 58 x 32 mm. We provide 6800, SPI and I2C interface to meet customer's different requirement.
The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it's very suitable for many applications. Below are the examples for reference.
- Industrial: Automotive application, Digital meter, UPS
- Medical: medical device & medical equipment
- Home appliance: audio, coffee machine, microwave oven
- Automobile: dashboard, car audio
Pin Definition:
1 VSS, (0V) Power ground
2 VDD, (5V) Power Supply For Logic
3 V0, Contrast adjust
4 RS, (H/L) H: Data L: Command
5 R/W, (H/L) R: Read W: Write
6 E, (H,H->L) Enable Signal
7~14 DB0--DB7, (H/L) Databus
15 LED A, 5.0V Power supply for LED backlight
16 LED K, 0V Power supply for LED backlight
| Product: | VATN 8x2 Character LCD Module | Characters / Columns: | 8 Characters X 2 Lines |
| LCD Type: | VATN, Negative, Transmissive | Backlight Color: | White, Blue, Yellow, Red, Green, Purple And Amber |
| Operating Voltage: | 5V, 3V Optional | Optics: | All Viewing Angles |
| Outline Dim.: | 58.0(L) X 32.0(W) X 13.2(T) mm | Viewing Area: | 38.0(L) X 16.0(W) mm |
| Driving Method: | 1/16 Duty, 1/5 Bias | Operating Temp: | -20°C To +70°C |
| Pin Number: | 16 Pins ( Customizable ) | Controller: | SPLC780D Or Equivalent |
| Interface: | 6800, MPC, I2C Optional | Compliance: | REACH & RoHS Compliant |
The features of VATN display LCD are in high contrast, wide viewing angle, high brightness. VA Display can replace Black Mask and DFSTN ( Double Film Conpensative STN ). It is suitable for Security control, White goods, Audio, Medical devices, POS, Dash board applications. VATN Display is an alternative for traditional lcd alphanumeric display. SAEF’s VATN display, alphanumeric LCD display module are available in 8x2 LCD,16x1 LCD,16x2 LCD,16x4 LCD,20x2 LCD,20x4 LCD with backlight options in white, blue, yellow, red, green, purple and amber color.

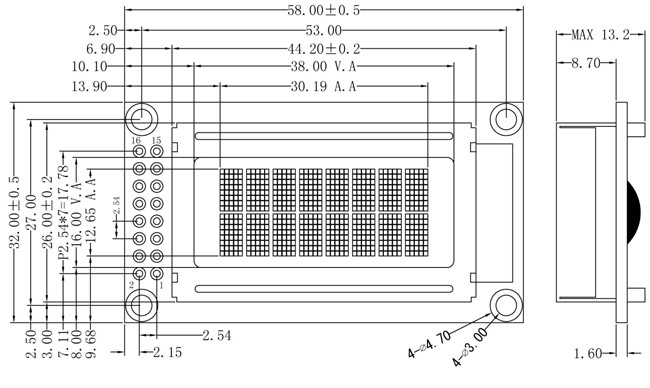

VATN Alphanumeric LCD Display 8x2, Display LCD 8x2 Drawing

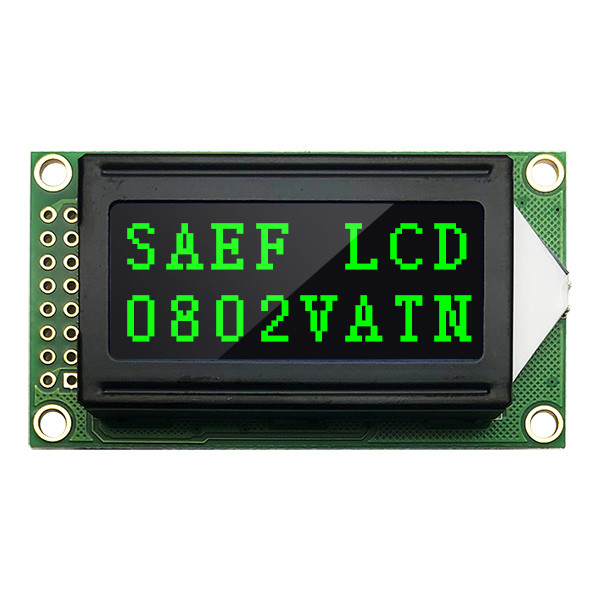

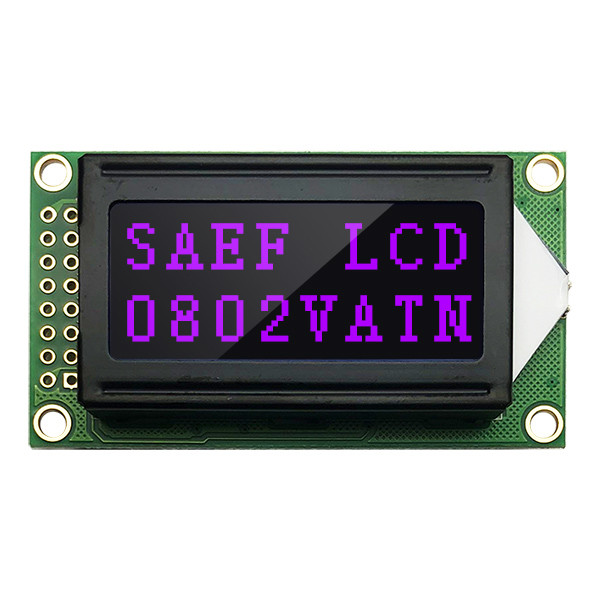

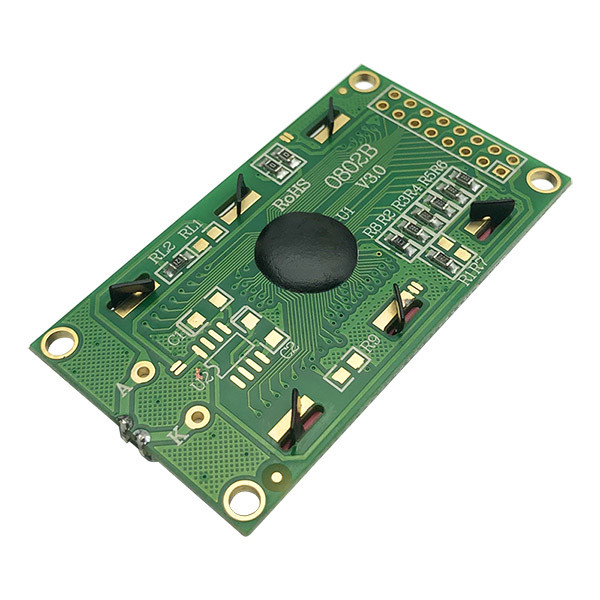

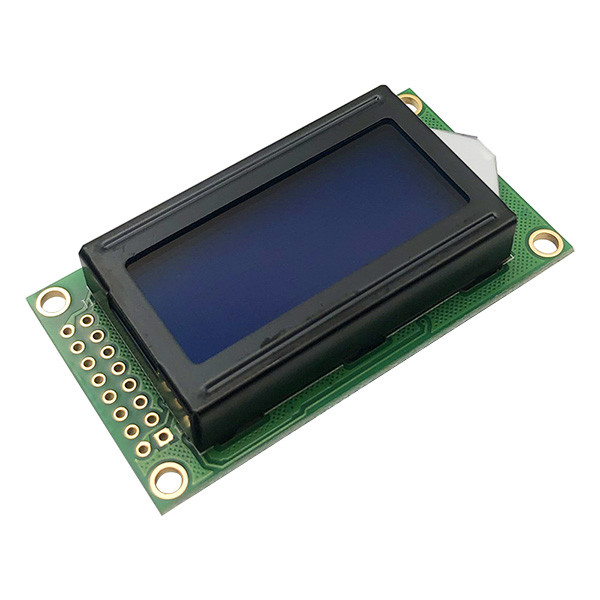

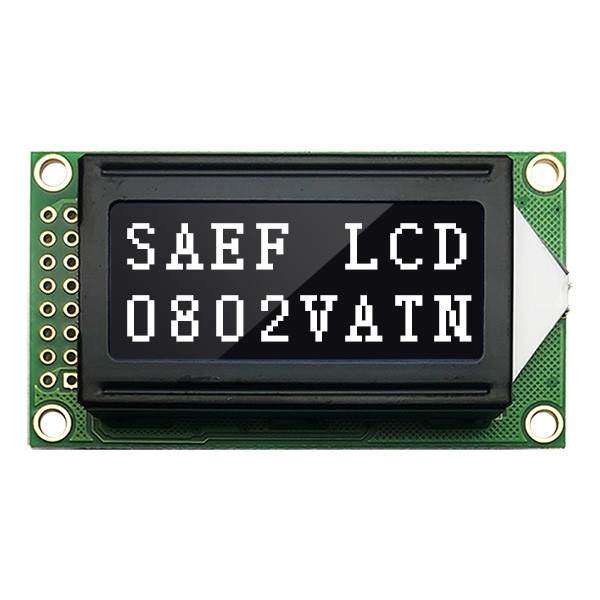

VATN Alphanumeric LCD Display 8x2, Display LCD 8x2 Real Product Image
